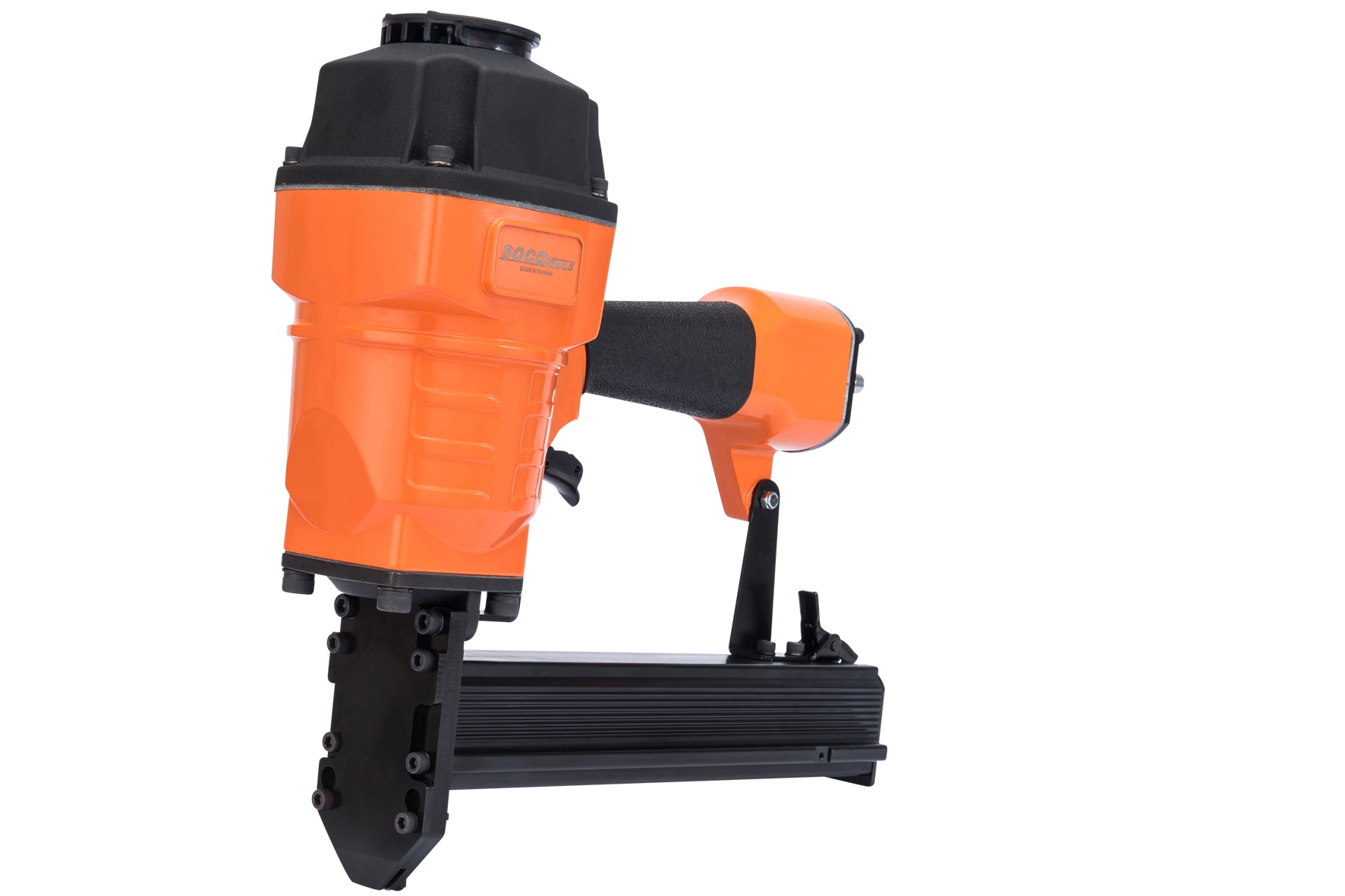

CF25AA

CF25AA
CF25AA
Product Description
Applications:
  • Picture, mirror, door and window frames assembly
Feature:
  • Perfect balance and light weight
  • High power for hard wood applications
  • 360° adjustable exhaust cover
  • Slide-in insert to adjust the different lengths of fasteners
  • Anti-double shot mechanism
  • Profiled nose and extended driver to work on corner joints
  • Fasteners for BEA W25-826E
Inquiry
Product Introduction
Specification:
Length 350 mm
Height 340 mm
Wide 110 mm
Weight 4 kgs
Trigger Type Single contact
Housing Material Magnesium
Magazine Loaded Bottom loading magazine
Load Capacity 80 fasteners
Operating Pressure 100-120 psi
Fastener:
Crown Size 34mm (1.38)
Length of Fastener  (inch)   12mm~25mm(1/2"~1")
BeA W25 Corrugated Fasteners
