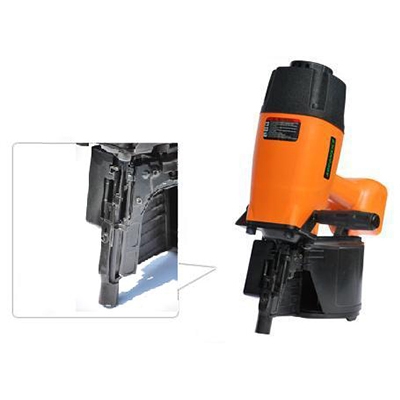

CN130WP2(3.3mm)

CN130WP2(3.3mm)
CN130WP2(3.3mm)
CN130WP2(3.3mm)
CN130WP2(3.3mm)
CN130WP2(3.3mm)
CN130WP2(3.3mm)
Product Description
Applications:
  • Construction work (ex: siding, roofing and sheathing)
  • Use for wooden cases
  • Light pallets
  • Wooden furniture
  • Wooden sashes and other wood products
Feature:
  • 360 exhaust deflector allows exhaust of air in any direction

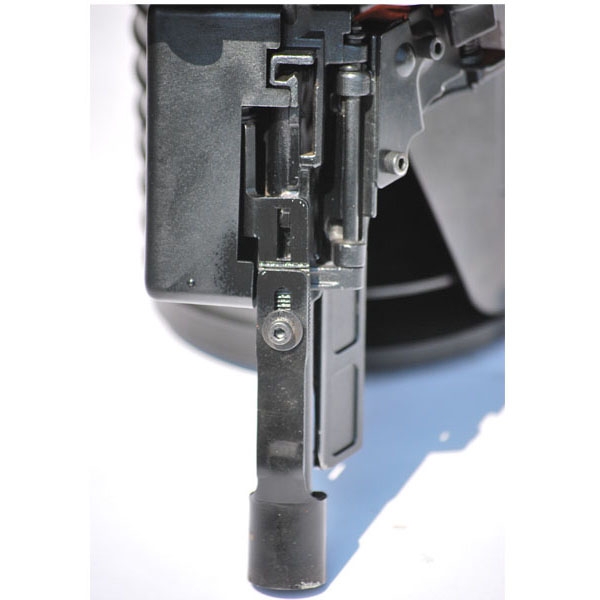

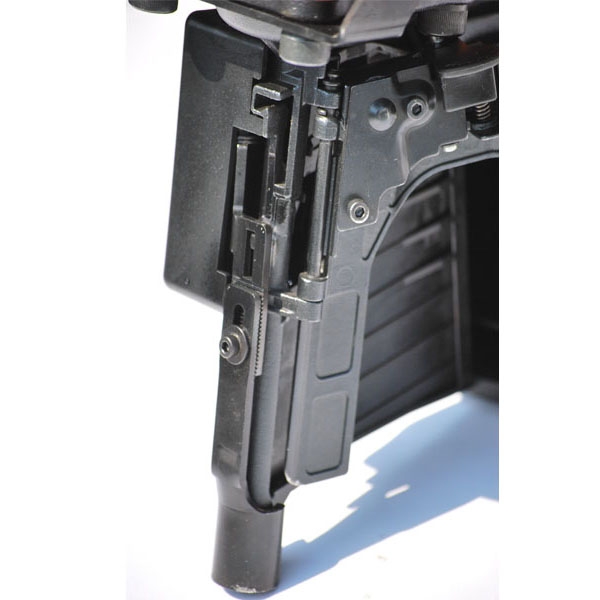

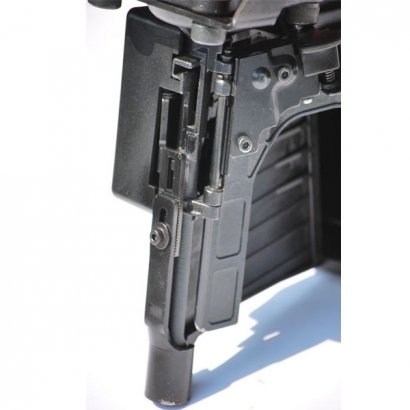

  • Depth of drive adjustment to countersink or flush drive nails
  • Lightweight design prevents arm fatigue for user
  • Drives wire and plastic sheet collated nails
Inquiry
Product Introduction
Specification:
Length 380 mm
Height 480 mm
Wide 113 mm
Weight 5.5 kgs
Load Capacity 200-300 nails
Operating Pressure 100-120 psi
Magazine Type Flat type
Housing Material Aluminum Alloy
Magazine Loading Side loading magazine
Trigger Type Singel fire and consecutive driving of nails
Fastener:
Shank Dia. (inch) 2.5mm~3.3mm(0.098"~0.13")
Head Dia. 6.0 mm~7.2mm
Collated Wire or Plastic Sheet
Length (inch) 83mm~130mm(3-3/8"~5-1/8")
